Hoffmann sro was founded in May 2011 based on three years of development and testing of our flagship - DF48 - a multifunctional battery regeneration device.

The main function of the DF48 regenerator is to extend the life and usability of lead-acid batteries (traction, starting, gel and AGM).

The most effective use of the DF48 device is with new batteries whose capacity is between 90 – 100%.

DF48 is most often used for batteries with a capacity between 35 - 90%, when the regenerated battery is restored to a capacity comparable to a new battery.

The DF48 regenerator can normally be used with batteries whose voltage is equal to 0V = 0Ah, and in certain cases also with batteries that have voltage, but the capacity ranges between 1 - 35% (Ah).

The DF48 can 100% desulfate lead-acid batteries, which are traction, starter, gel or AGM batteries.

The DF48 device balances the voltage on the cells, thereby extending the battery life and restoring the electrochemical process. For example, a 48V 800Ah battery that is currently at 0V will restore the electrochemical process to the original nominal voltage, i.e. 48V. Subsequently, the DF48 will raise the capacity to 100% of the nominal battery capacity, i.e. 800Ah.

DF48 has found its clients abroad, namely in Great Britain, Germany, Austria, Poland, Spain, Chile, Taiwan, Ukraine and of course Slovakia.



Company goal

The goal of Hoffmann sro is the efficient and high-quality production of the DF48 device, which is reliable and brings users high savings and economic return.



Slogan

We give a second life to your batteries.

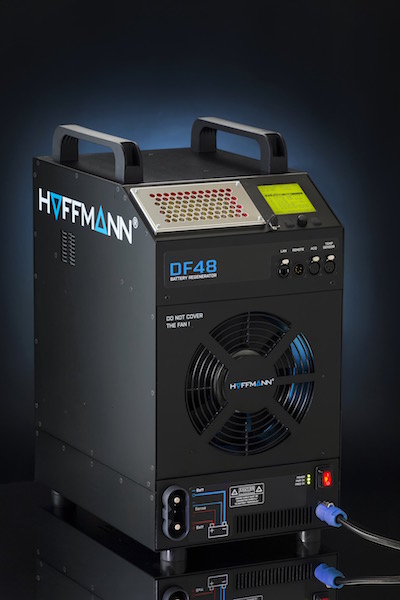

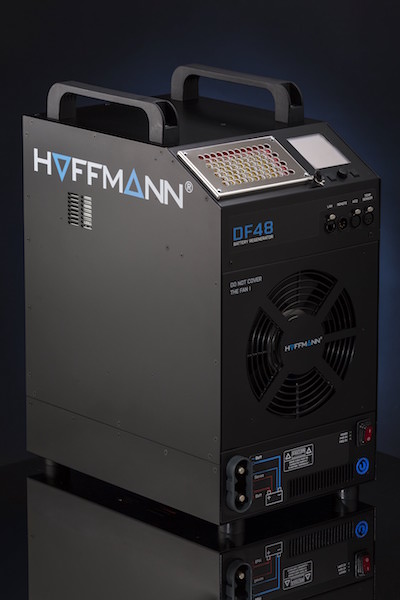

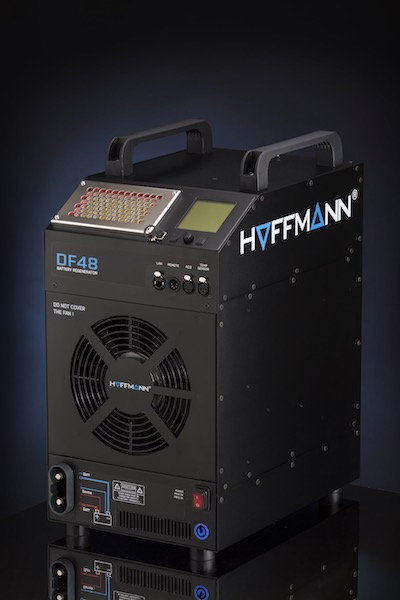

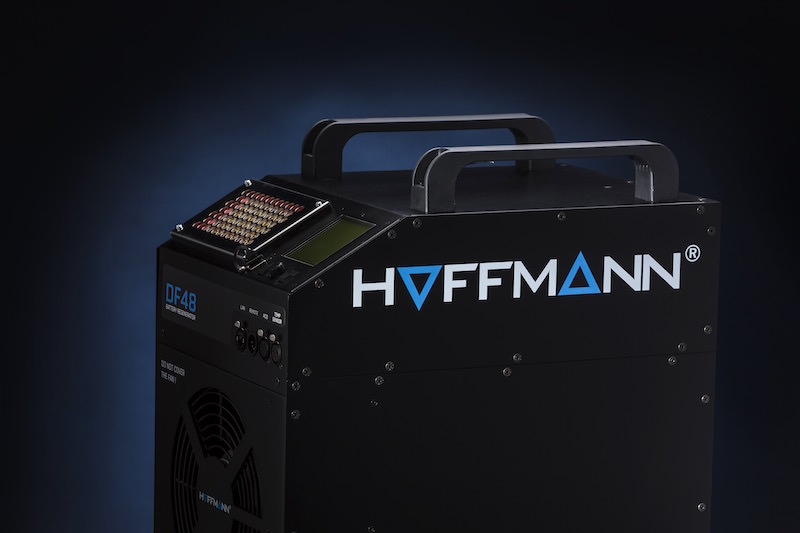

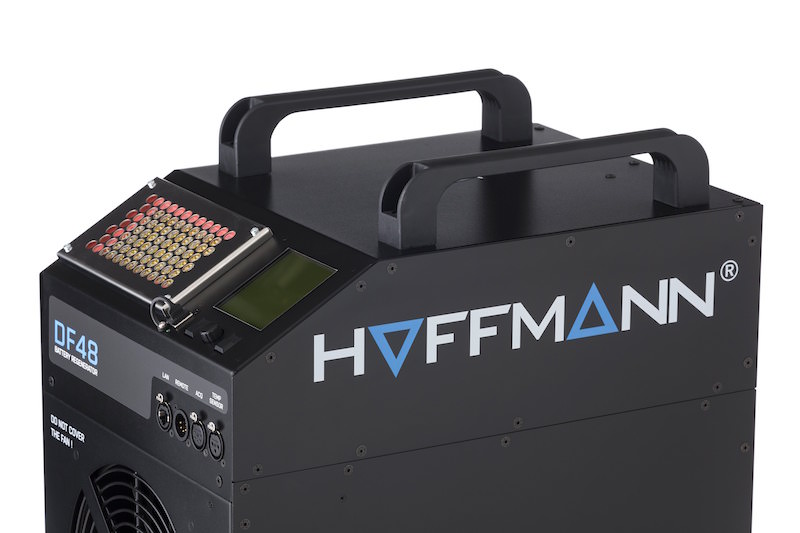

DF48 - Regeneration device, charger, discharger

Detailed description:

DF48 is a special device designed for the regeneration of lead-acid batteries. It is a charger, a discharger (writes measured values ​​to a pdf) and a regeneration device.
  • It uses a charge-discharge process to 100% dissolve sulfate.
  • It equalizes the voltage on the cells, which results in a 2-3-fold increase in battery life.
  • We guarantee 2 times the service life, i.e. 14-16 years. DF48 maintains batteries at 75% -100% capacity (depending on the condition of the battery before regeneration) without the need for additional investments. DF48 is such an effective technology that even 0V batteries can be revived to 100% of their original capacity.
Our DF48 device is completely controllable via the internet from anywhere in the world.

Usage:

The DF48 can be used in all areas where lead-acid batteries are used:
  • Forklifts
  • Cranes, truck cranes
  • Locomotives and tractors
  • Heavy transport and handling equipment
  • Machinery and equipment for mining, recycling and landfills
  • Cargo center service
  • For battery systems in power plants, hospitals, server rooms
  • Battery systems
  • Island
  • Wind energy / hybrid - photovoltaic systems
  • Backup batteries - gel, AGM

3D VIEW

0%

    References

    Technical data

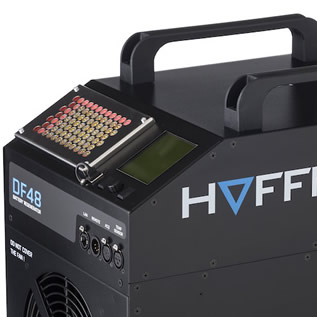

    DF48

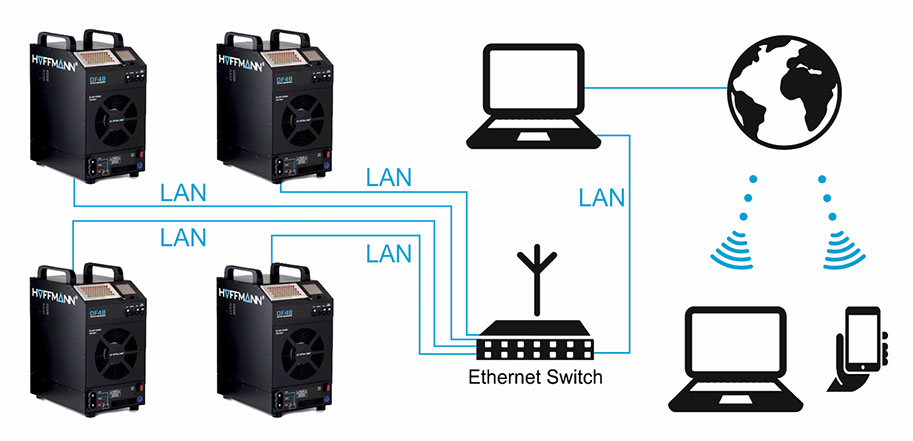

    • The DF48 multifunction device can be fully controlled via a computer.
    • The computer can then be fully controlled via the Internet.
    • This means that our DF48 multifunctional device is fully controllable anywhere in the world from any location in the world.
    • Through any input device, i.e. through a computer, tablet and mobile phone.

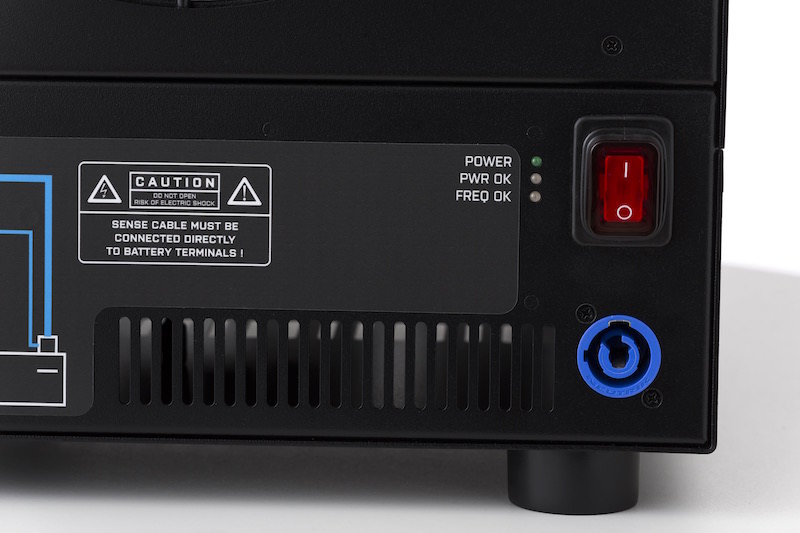

    Power supply voltage:
    Single phase 220V~240V /16A /50~60Hz
    or 200V~207V /min.20A /50~60Hz

    Maximum power input: 3500W

    Mains cable:
    H05RNF 1.5mm2, UNI-Schuko plug

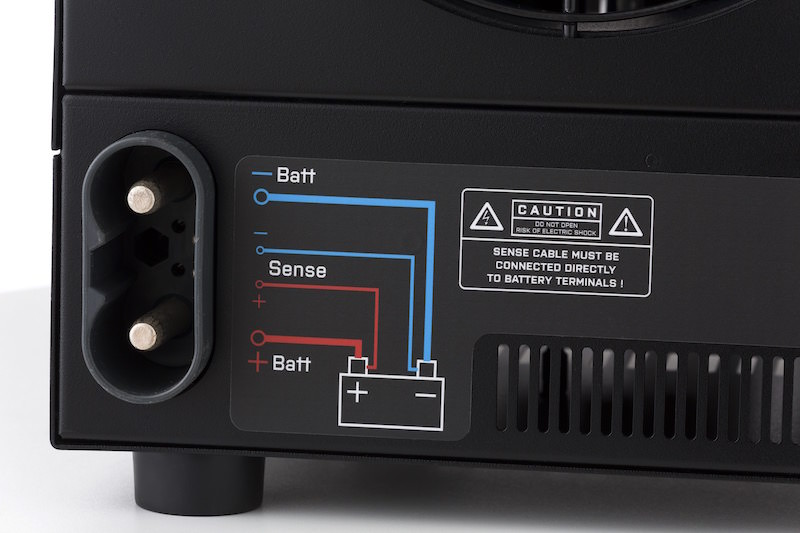

    Power cable to battery:
    Blue + red cable 50mm2, 3m REMA320 + measuring cables

    PFC: Yes

    Charging voltage: 6-48V adjustable by 2V

    Charging current: 0-50A adjustable by 1A

    Discharge current: 0-160A adjustable by 1A

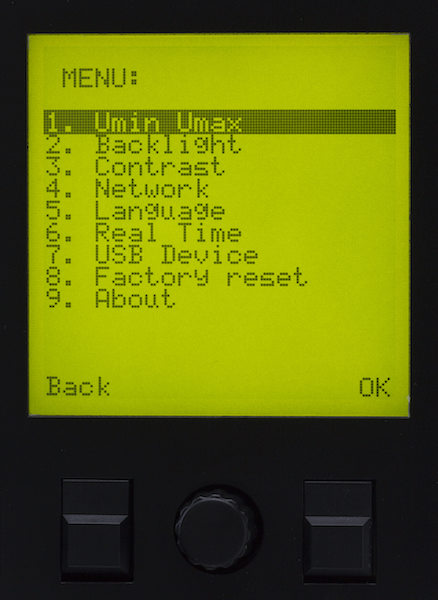

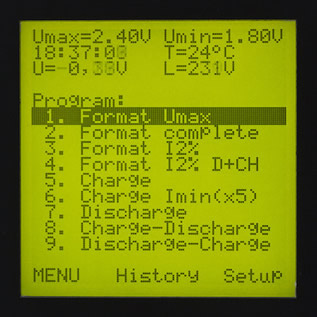

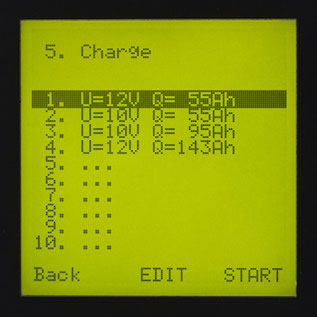

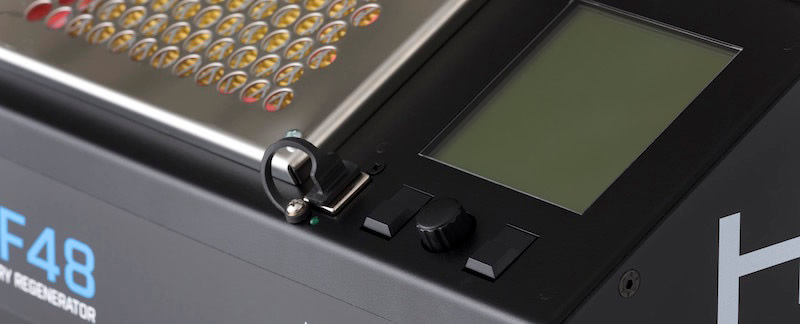

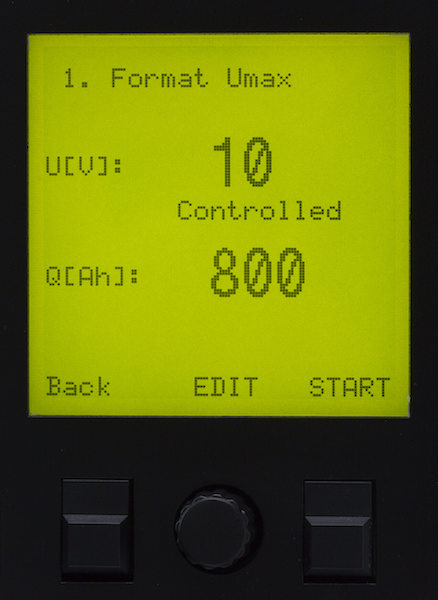

    Display: Yes

    USB functions:
    Uploading new software, complete recording of function progress

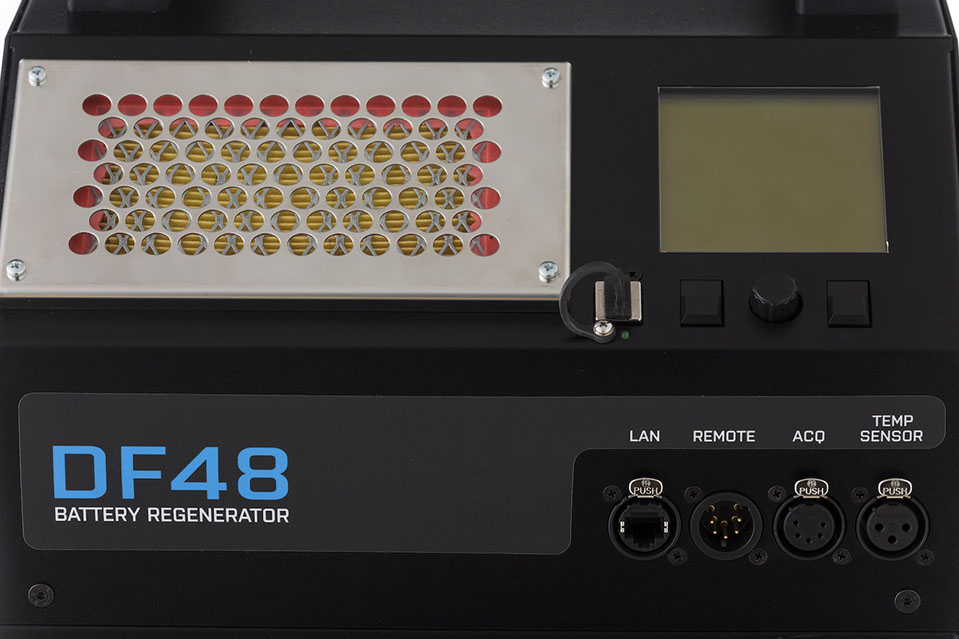

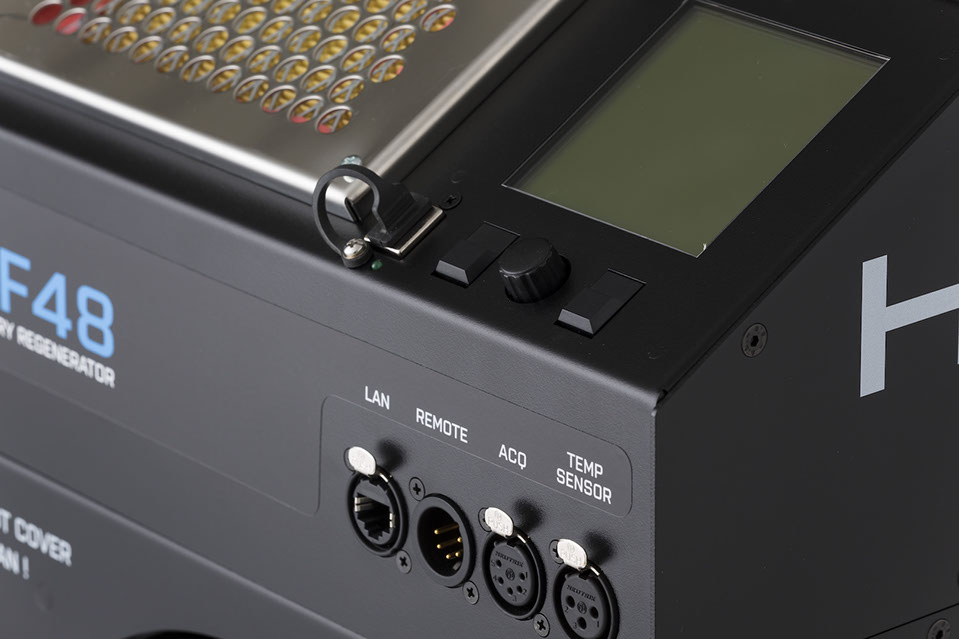

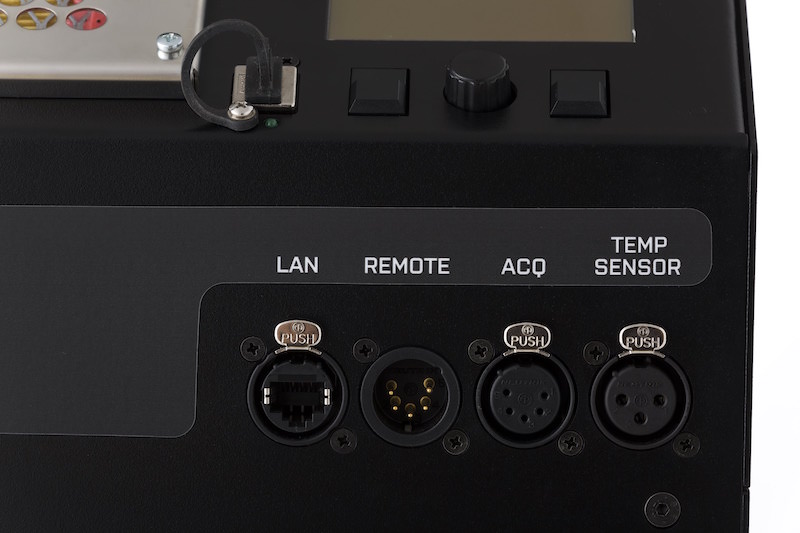

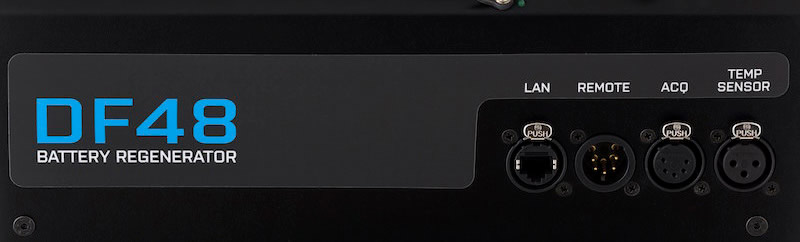

    Ports:
    1. LAN – complete control via PC and internet
    2.Remote
    3.Acq
    4.Temp sensor

    Protections: Overvoltage, current, thermal

    Working conditions: -20 / + 40 °C, humidity max. up to 60%

    Dimensions: Height 760mm, depth 310mm, width 440mm / stainless steel

    Weight: 35kg

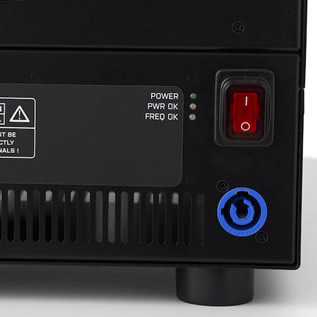

    Gallery

    FAQ

    Usually over a year. After a year, the battery capacity is still higher than the value at which formatting was initiated.

    Yes, provided that all battery cells are functional.

    Yes, as the charging process equalizes the voltage on the cells. Simply contact our company or our nearest sales representative, who will visit you after agreeing a date and explain the operation of the device.

    Simply contact our company or our nearest sales representative, who will visit you after agreeing a date and explain the operation of the device.

    We resolve device malfunctions under warranty by replacing the device.

    The company also provides post-warranty service, which we perform, depending on the reported problem, either remotely or directly at the client's site. In the case of a more complex repair, we will provide a replacement device for the necessary time for the repair.
